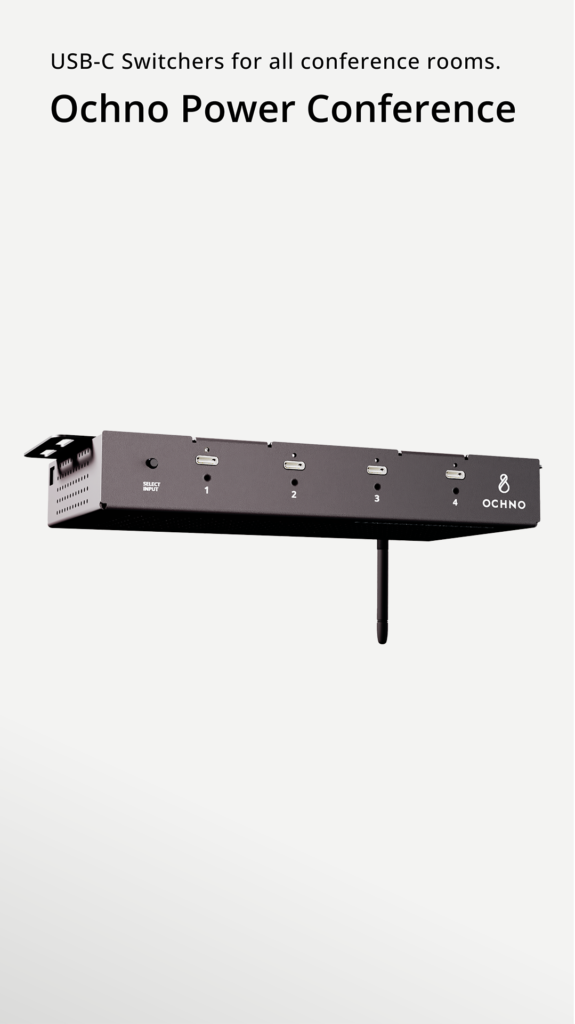

Ochno Power Conference 3 (single)
x1 switchable USB–C port in. HDMI and USB 3.0 pass through.
1 x USB-C ports for video and 100W charging
3 x USB-C ports for 100W charging
1 x HDMI 2.0 x USB 3.0 passthrough
License
Ochno Operated, 3 year prepaid.
License
Ochno Power Conference 3, upgrade from Single to Full version.
Warranty
Extended warranty additional 2 years (total 5 years).
Ochno Power Conference (full) extended warranty, additional 2 years (total 5 years).
Warranty
Extended warranty additional 2 years (total 5 years).
Ochno Power Conference (single) extended warranty, additional 2 years (total 5 years).
Ochno Pull Out LED Socket,
Aluminum
USB-C socket for table mount (20 mm hole). Used with Ochno Cable Management Kit, O-POS-CMGT.
Surface
Aluminium, anodized
Compliance
RoHS/REACH
P/N EAN
7350113051592
Ochno Pull Out LED Socket,
Black
USB-C socket for table mount (20 mm hole). Used with Ochno Cable Management Kit, O-POS-CMGT.
Surface
Black, anodized
Compliance
RoHS/REACH
P/N EAN
7350113051608
Ochno Pull Out Socket,
Aluminum
USB-C socket for table mount (20 mm hole). Used with Ochno Cable Management Kit, O-POS-CMGT.
Surface
Aluminum, anodized
Compliance
RoHS/REACH
P/N EAN
7350113051615
Ochno Pull Out Socket,
Black
USB-C socket for table mount (20 mm hole). Used with Ochno Cable Management Kit, O-POS-CMGT.
Surface
Black, anodized
Compliance
RoHS/REACH
P/N EAN
7350113051622
Ochno Cable Management Kit
Cable management kit for use with Ochno pull out sockets.
Contents
Metal bracket to fix the USB-C cable, cloth bag and cable weight
Material
Black cloth
Compliance
RoHS/REACH
P/N EAN
7350113051653
Ochno Aluminum Socket
USB C socket for table mount (18 mm hole)
Length
1 meter
Connector A
USB Type C Male
Connector B
–
Cable color
Black
Surface
Aluminium,
anodized
Locking screw
Yes
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113050977
Ochno Black Socket
USB C socket for table mount (18 mm hole)
Length
1 meter
Connector A
USB Type C Male
Connector B
–
Cable color
Black
Surface
Black,
anodized
Locking screw
Yes
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113050991
Ochno Brass Socket
USB C socket for table mount (18 mm hole)
Length
1 meter
Connector A
USB Type C Male
Connector B
–
Cable color
Black
Surface
Brass,
anodized
Locking screw
Yes
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113051028
Ochno Copper Socket
USB C socket for table mount (18 mm hole)
Length
1 meter
Connector A
USB Type C Male
Connector B
–
Cable color
Black
Surface
Copper,
anodized
Locking screw
Yes
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113051080
Ochno Aluminum LED Socket
USB C socket with LED button for table integration (18 mm hole)
Length
1 meter
Connector A
USB Type C Male
Connector B
–
Cable color
Black
Surface
Aluminium,
anodized
Locking screw
Yes
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113050670
O-SBC-200-1 is required to control the button.
Ochno Black LED Socket
USB C socket with LED button for table integration (18 mm hole)
Length
1 meter
Connector A
USB Type C Male
Connector B
–
Cable color
Black
Surface
Black,
anodized
Locking screw
Yes
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113051325
O-SBC-200-1 is required to control the button.
Ochno 70cm white USB-C cable, angled
USB C cable for connection between Ochno socket and laptop
Length
0.7 meter
Connector A
USB Type C Male, straight
Connector B
USB Type C Male, angled
Cable color
White
Surface
–
Locking screw
No
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113050731
Ochno 70cm black USB-C cable, angled
USB C cable for connection between Ochno socket and laptop
Length
0.7 meter
Connector A
USB Type C Male, straight
Connector B
USB Type C Male, angled
Cable color
Black
Surface
–
Locking screw
No
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113051523
Ochno 70cm white USB-C cable, straight
USB C cable for connection between Ochno socket and laptop
Length
0.7 meter
Connector A
USB Type C Male, straight
Connector B
USB Type C Male, straight
Cable color
White
Surface
–
Locking screw
No
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113050724
Ochno 70cm black USB-C cable, straight
USB C cable for connection between Ochno socket and laptop
Length
0.7 meter
Connector A
USB Type C Male, straight
Connector B
USB Type C Male, straight
Cable color
Black
Surface
–
Locking screw
No
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113051585
Ochno 2m USB-C Cable
For use with Ochno pull out sockets.
Length
2 meter
Connector A
USB Type C Male, straight
Connector B
USB Type C Male, straight
Cable color
Black
Surface
–
Locking screw
Yes
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113051660
Ochno 2m white USB-C cable,
with locking screw
USB C cable for connection between OPC3 and laptop
Length
2 meter
Connector A
USB Type C Male, straight
Connector B
USB Type C Male, straight
Cable color
White
Surface
–
Locking screw
Yes
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113051165
Ochno 2m black USB-C Cable,
with locking screw
USB C cable for connection between OPC3 and laptop
Length
2 meter
Connector A
USB Type C Male, straight
Connector B
USB Type C Male, straight
Cable color
Black
Surface
–
Locking screw
Yes
Max power
100W
USB standard
USB3.2 Gen2
Maximum bandwidth
10 Gbps
Video
DP Alt mode 1.4
Compliance
RoHS/REACH
P/N EAN
7350113051172
Ochno USB-C Extension Cable
For connecting the wall side of a meeting room with the table
Product name
Ochno USB-C Extension Cable
Model
10 Meter: O-EC-10
20 Meter: O-EC-20
Contents
Active Optical Cable, Attachable electronics cable, User Guide
Warranty
3 years
Regulatory approvals
CE, FCC, RoHS, REACH
Safety class
IP20, 90% RH
Ambient temperature
5° – 40°C.
Power distribution
Rated for 15W. Not be used for charging laptop.
Alt-mode configuration
2 Lane DP + 2 Lane USB 3.2
USB
USB 2.0 HS (480 Mbit/s), USB 3.2 Gen 2 (10 Gbps)
Video
2 Lane DP 1.4 HBR3 (2 x 8.1 Gbps)
Direction
Uni-directional.
Conduit size
Minimum inner diamater 15mm with smallest tube bend radius of 50mm. Larger inner diameter can handle smaller tube bend radius
Max pull-force
156 Nm / 16 Kg
HDMI to USB-C adapter
Adapter for laptops with USB-C ports
Length
0.1 meter
Connector A
USB Type A/HDMI
Connector B
USB Type C Female
Cable color
White
Surface
–
Locking screw
No
Max power
–
USB standard
–
Maximum bandwidth
–
Video
–
Compliance
RoHS/REACH
P/N EAN
7350113050700
Adapter for Ochno sockets
Adapter for control of up to 4 sockets with LED buttons
Length
1 meter
Connector A
USB Type A Male, straight
Connector B
–
Cable color
Black
Surface
–
Locking screw
No
Max power
–
USB standard
–
Maximum bandwidth
–
Video
–
Compliance
RoHS/REACH
P/N EAN
7350113050656
Ochno LED buttons
4 LED-buttons for table integration (18mm hole)
Length
1.5 meter
Connector A
USB Type A Male, straight
Connector B
–
Cable color
Black
Surface
Black plastic, green LED
Locking screw
No
Max power
–
USB standard
–
Maximum bandwidth
–
Video
–
Compliance
RoHS/REACH
P/N EAN
7350113050472
Adapter for daisy chain
Adapter for daisy chain connection of O-PC-3
Length
2 meter
Connector A
USB Type A Male, straight
Connector B
–
Cable color
Black
Surface
–
Locking screw
No
Max power
–
USB standard
–
Maximum bandwidth
–
Video
–
Compliance
RoHS/REACH
P/N EAN
7350113051516
Cable adapter, Black, 2 m
Adapter for serial connection to external control systems
Length
2 meter
Connector Type
USB A – USB C, straight
Connector Gender
Male
Cable color
Black
Surface
–
Locking screw
No
Max power
–
USB standard
–
Maximum bandwidth
–
Video
–
Compliance
RoHS/REACH
P/N EAN
7350113051554

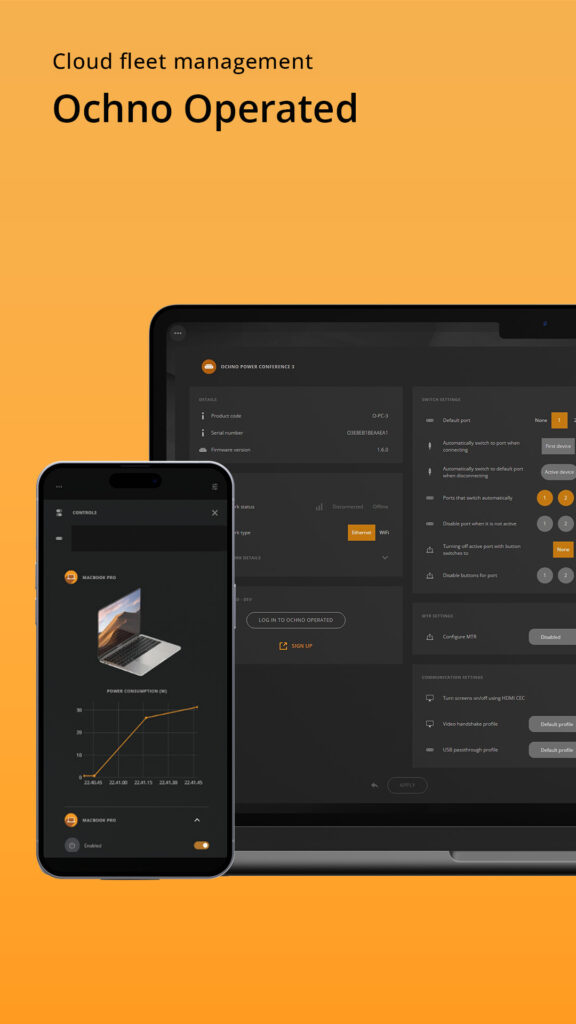

Ochno Operated is our digital platform, the key to enabling our brilliantly designed hardware to power up and gain its own digital life. You can access the Ochno Operated platform for remote management anytime, anywhere, as long as you have an internet connection.
Ochno Operated is designed to simplify our customers’ lives by providing several powerful modules
Create an account in Ochno Operated
OPC Management allows you to remotely change the settings of your OPC unit and manage firmware updates.
Live Usage Logs display your OPC history; including network connection, power outages, and device connection.
Real-time oversight and management of all conference room peripherals via Ochno Operated
Streamline BYOD / UC integration with intelligent switch through Ochno Operated
Analytics delivers detailed usage reports for your Ochno units, tracking everything from operational history to system performance.
