Ochno Power Hub 4 Cloud Managed USB-C Charger

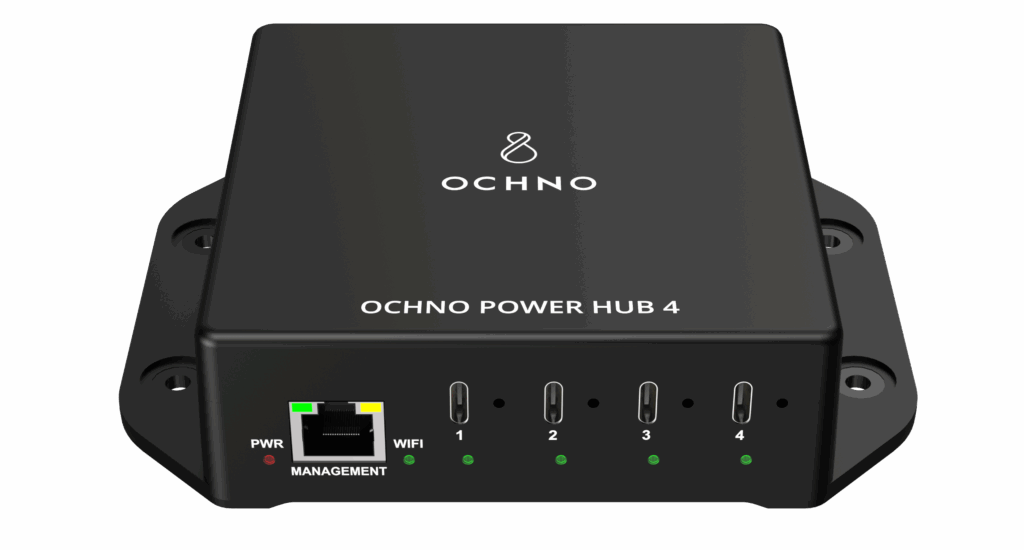

Ochno Power Hub 4

is a smart USB-C charger for all spaces

Ochno Power Hub 4 Managed by Ochno Operated
in the cloud​

Smart charger​4 port USB-C charger, up to 140W per port, total 240W

For professional installations​Installed into all furniture with cables locked​

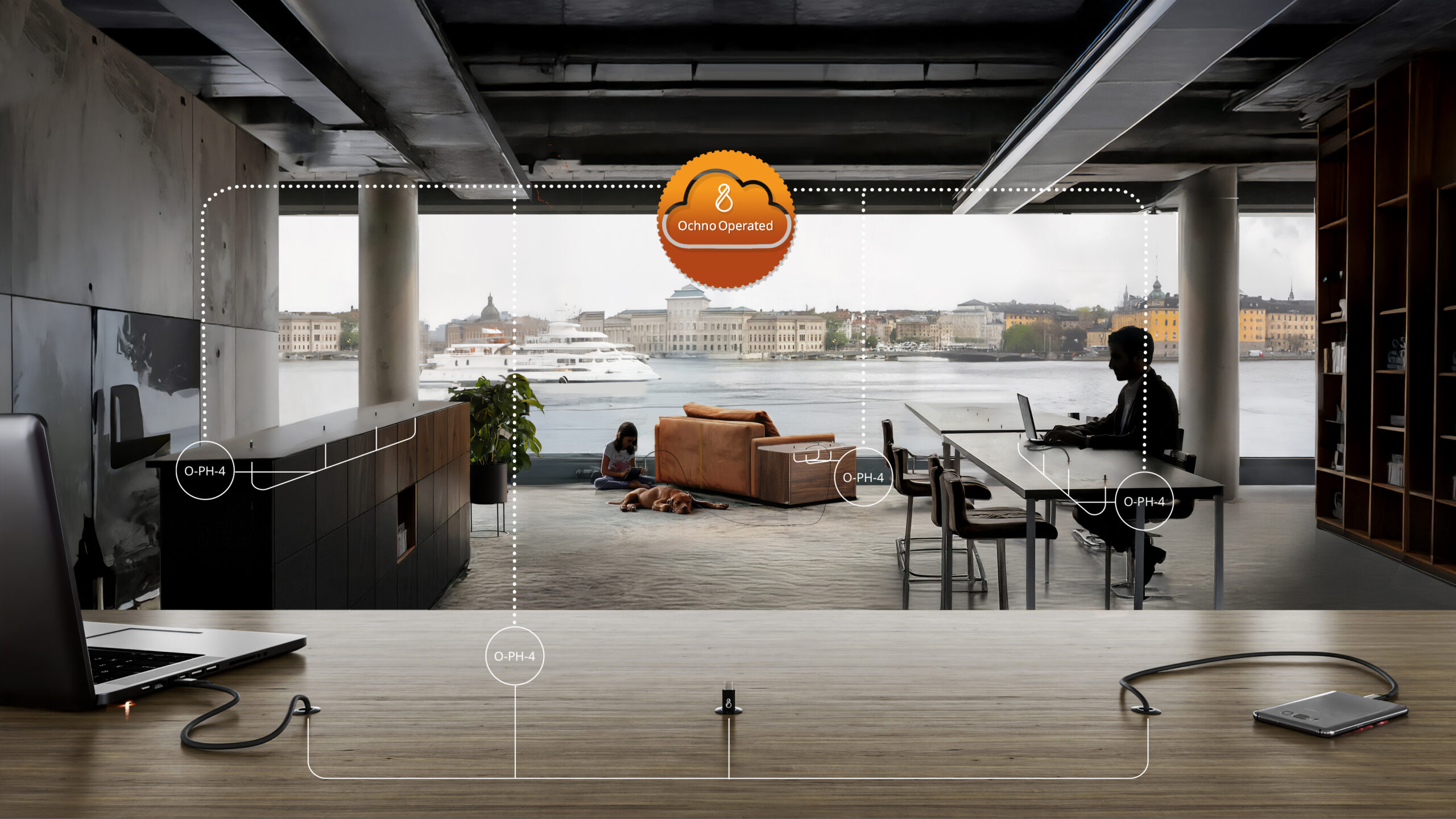

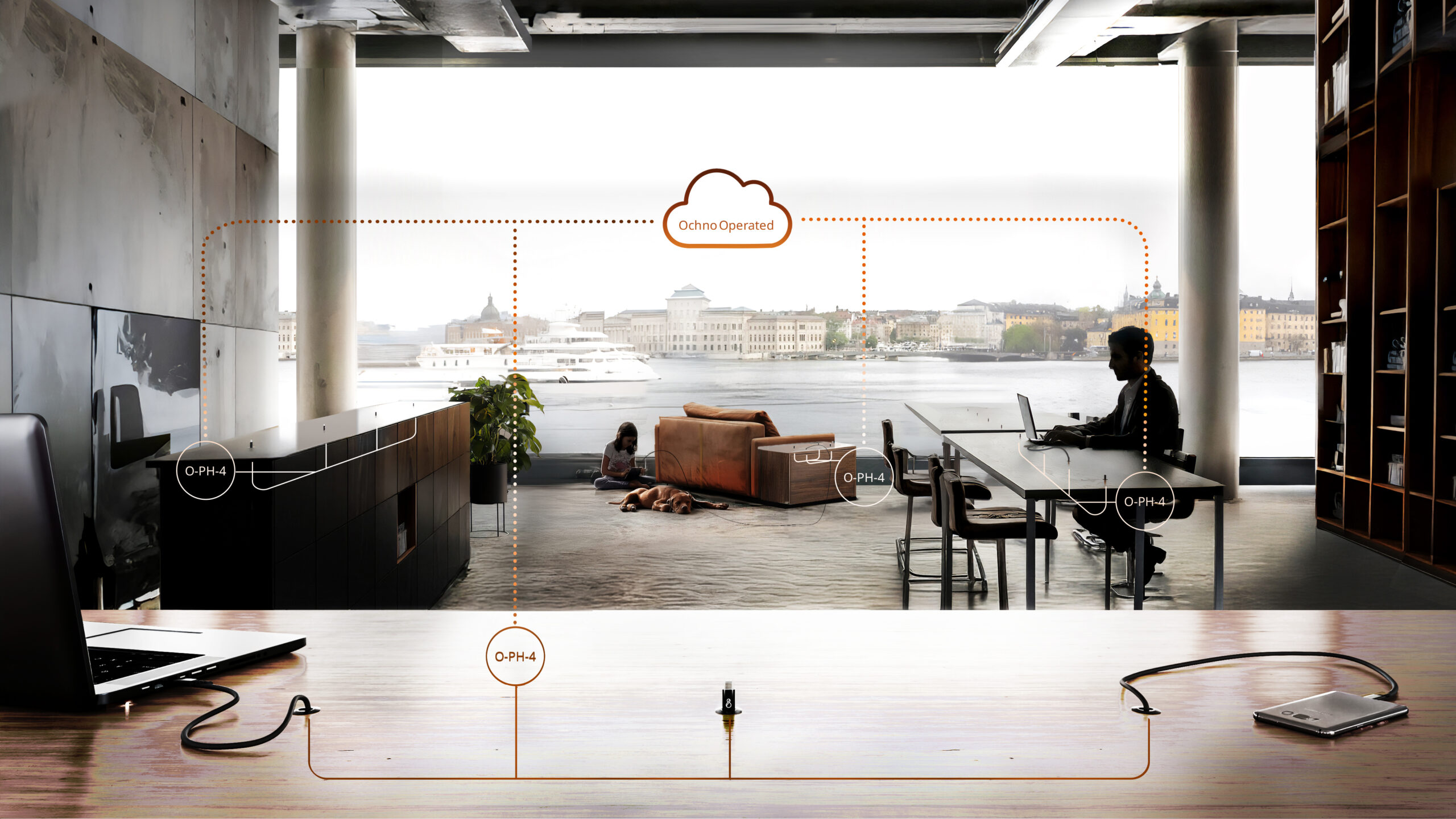

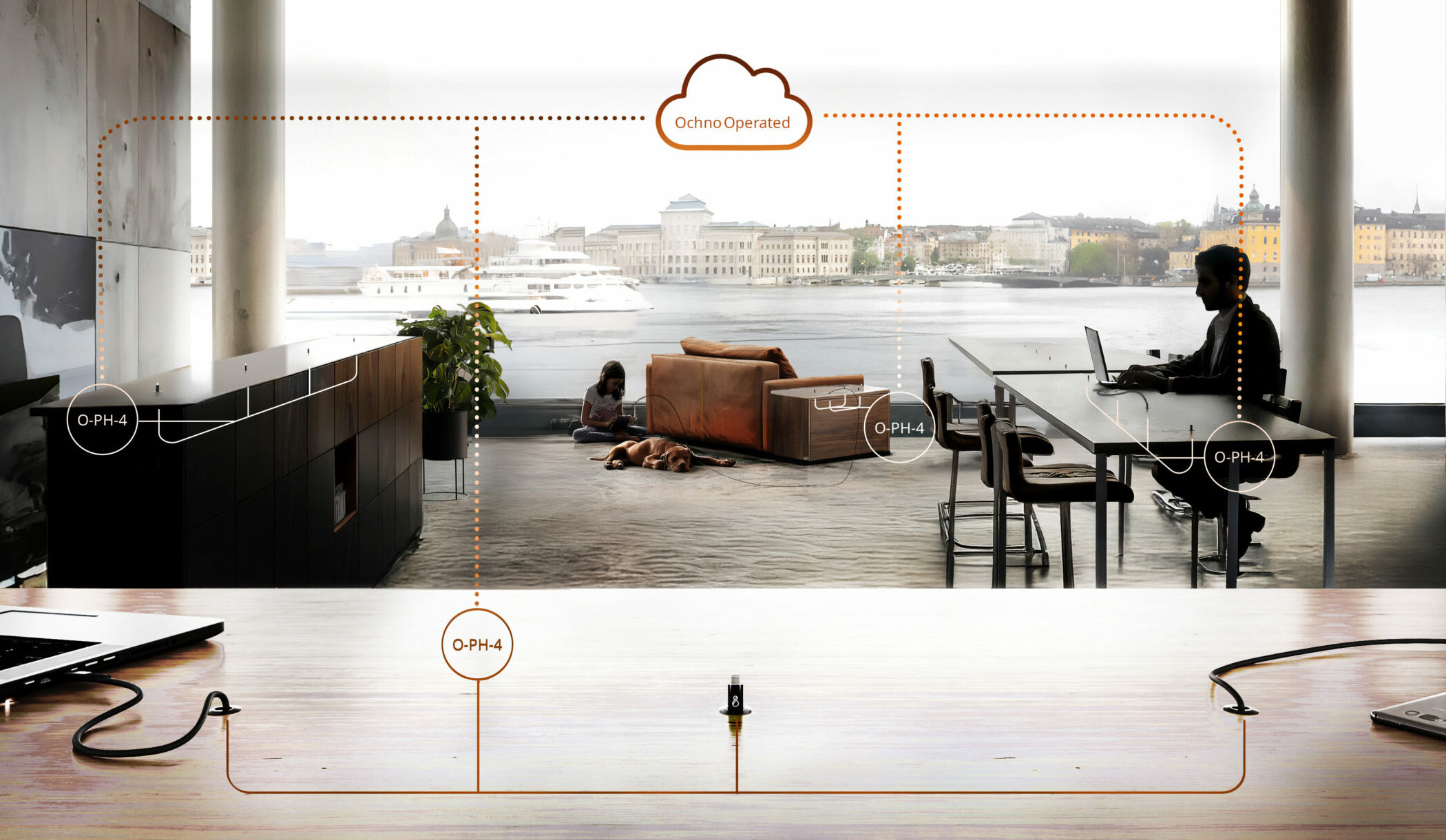

Cloud Management​Connected to Ochno Operated for management, analytics and insights​

Technical Specifications

General

Product name
Ochno Power Hub 4

Product code
O-PH-4

Box contents
Main unt O-PH-4, power cord, 4 screws for installation, quick guide.

Warranty
3 years

Dimensions
147x113x36 mm

Weight
860 g

Certificates
CE, FCC, ETL, RoHS, REACH

Safety class
IP20, 5%-80% RH operation. 5%-95% under transport

Ambient temperature
Max 25°C/77°C

Protection
Over-current, over-voltage, over-temperature

Power

Input
100-240V AC, 50/60Hz, 2.5A

Output

USB-C1-4: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A Max
USB-C1+C2: 140W+100W
USB-C1+C2+C3: 100W+65W+65W
USB-C1+C2+C3+C4: 65W+65W+65W+45W
PPS 3.3V-21V, 5A, EPR, PD3.1
Total output: 240W max

Network

Wi-Fi
2.4 GHz (802.11 b/g/n) connectivity to Ochno Operated management portal

Ethernet
1xRJ-45, 10/100 Mbps Ethernet connectivity to Ochno Operated management portal (this port complies with CISPR32 CE ClassA)



Designed in Sweden.​
